Soft LED Module 256x128mm, RGB LED Flexible Panel Indoor Full-color Curved LED Wall Scree Display Module Advertising signage P2

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.P2soft256x128
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   54.5
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 54.5
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Product standard
    P2mm
    Pixel configuration
    SMD1515 3 in 1
    LEDs configuration
    Red: wave length: 625~630nm;700-800mcd
    Green: wave length: 525~530nm;1500-1800mcd
    Blue: wave length: 470~475nm;400-500mcd
    Pixel pitch (mm)
    2
    Pixel density(dots/㎡)
    250000
    Calibrated brightness(cd/sqm,nit)
    800 nits(adjustable)
    Calibrated brightness proportion ratio
    R: G: B = 30%:60%:10%(adjustable)
    Color temperature
    3,500° — 9,500° K(adjustable)
    Contrast ratio
    4,000:1(adjustable)
    Brightness adjustment(dimming)
    100 grade auto/manual-adjustment
    View angle(degree)(50% brightness)
    Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)
    Readability viewing angle
    Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)
    Refresh rate(Hz)
    >600 Hz (adjustable)
    Frame frequency(Hz)
    >60 Hz
    Interface port
    DVI interface (DVI connector)
    Input signal
    VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
    Protection grade
    IP31 front side/IP31 backside
    LED Drive
    Constant-current drive
    Lifetime (hours)(50% brightness)
    100,000 hours
    Signal transmission direction
    Horizontal
    Operating temperature (Celsius degree)
    -10~+40'
    Storage temperature (Celsius degree)
    -15~+50'
    Operation humidity (RH)
    10-75%
    Servicing
    Front and back serving optional
    Control mode
    Synchronous & asynchronous available
    Communication options
    Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
    Maximum power consumption (W/SQM)
    880
    Average power consumption (W/SQM)
    352
    Screen operation mode (scan/static)
    1 / 32s
    Module configuration (Pixels quantities of the module)
    Length 128, Height 64
    Module dimensions (mm)
    Length 320, Height 160
    Use for
    Indoor or semi-outdoor

    Kindly Note:

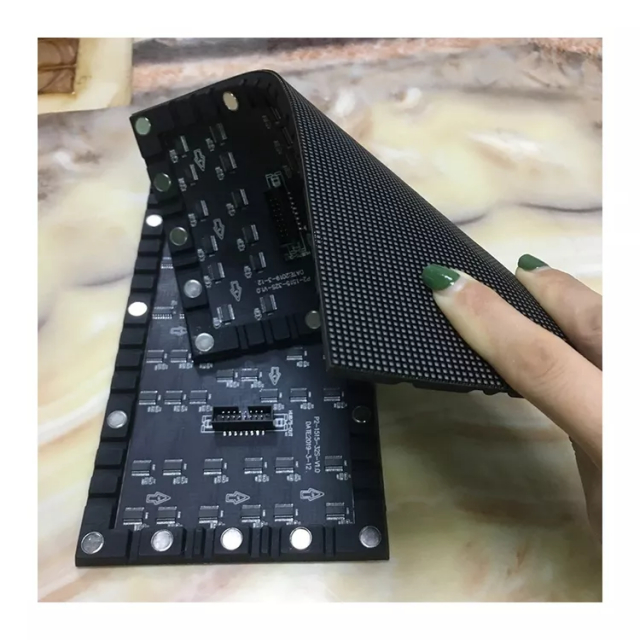

    Different batches of Led modules maybe have some difference of color and brightness, please buy all led modules of one led display screen at one time. And if possible, please buy some led modules as spare parts. The picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version. If you want to buy same PCB board and same screw holes led modules, please contact us in advance.Thanks for your understanding!


    If you need a large quantity of these items,

    please contact us for wholesale price from our email directly.
