P2.5 led display module

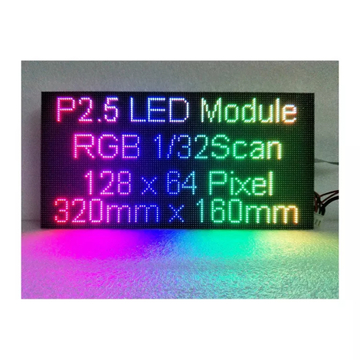

Soft LED Module 320x160mm Flexible LED Panel 128x64 Pixels, Indoor Full-Color LED Curved LED Wall Display Module P2.5 RGB Matrix

Name: Soft LED Module 320x160mm Flexible LED Panel 128x64 Pixels, Indoor Full-Color LED Curved LED Wall Display Module P2.5 RGB Matrix
Brand: ARGBROW
SKU: P25soft320x160
Price: 43.65 USD
Availability: InStock

In Stock. SKU.P25soft320x160

$ 43.65

40+ pieces

$ 39.285

Quantity:

piece(s)

Shipping:

$ 7.40

to United States Change

Estimated delivery time : 0-27 working days. See details

Total Price:

$ 43.65 ~~$ 43.65~~

Shipping calculated at checkout.

Weight:

0.55 KG

Package:

37.50cm*18.00cm*4.00cm

Returns:

Read details

Add to Wish list

You May Also Like

Description
Specification
Download
Customer Reviews
Questions & Answers

Product standard	P2.5mm
Pixel configuration	SMD2121 3 in 1
LEDs configuration	Red:wave length: 625~630nm;700-800mcd Green:wave length: 525~530nm;1500-1800mcd Blue:wave length: 470~475nm;400-500mcd
Pixel pitch (mm)	2.5
Pixel density(dots/㎡)	250000
Calibrated brightness(cd/sqm,nit)	800 nits(adjustable)
Calibrated brightness proportion ratio	R: G: B = 30%:60%:10%(adjustable)
Color temperature	3,500° — 9,500° K(adjustable)
Contrast ratio	4,000:1(adjustable)
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)
Readability viewing angle	Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)
Refresh rate(Hz)	>600 Hz (adjustable)
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade	IP31 front side/IP31 backside
LED Drive	Constant-current drive
Lifetime (hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature (Celsius degree)	-10～+40'
Storage temperature (Celsius degree)	-15～+50'
Operation humidity (RH)	10-75%
Servicing	Front and back serving optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Maximum power consumption (W/SQM)	880
Average power consumption (W/SQM)	352
Screen operation mode (scan/static)	1 / 32
Module configuration (Pixels quantities of the module)	Length 128, Height 64
Module dimensions (mm)	Length 320, Height 160

Kindly Note:

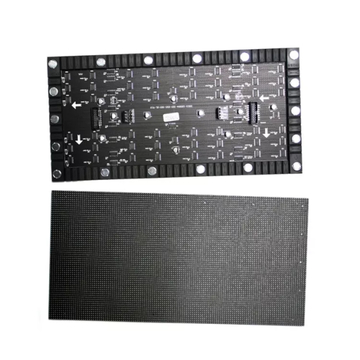

Different batches of Led modules maybe have some difference of color and brightness, please buy all led modules of one led display screen at one time. And if possible, please buy some led modules as spare parts. The picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version. If you want to buy same PCB board and same screw holes led modules, please contact us in advance.Thanks for your understanding!

If you need a large quantity of these items,

please contact us for wholesale price from our email directly.
