2.5mm Pixel 64X64 Dots 1/32S LED display Video wall Indoor full color module, SMD 3in1 RGB LED panels P2.5 Dot Matrix Panel

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.P25in160x160
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   28.58
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 28.58
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Describe

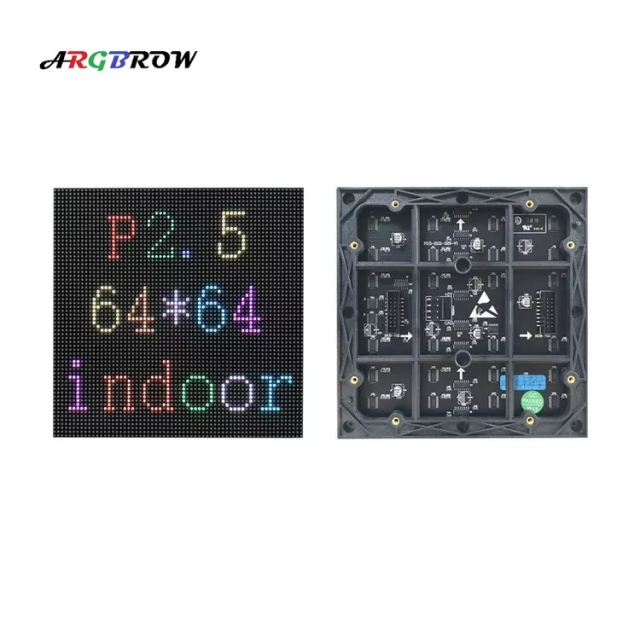

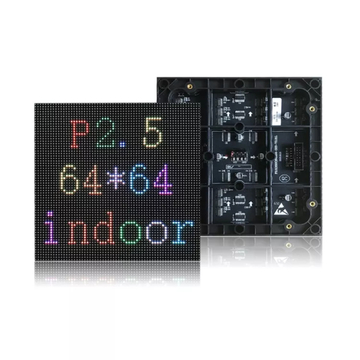

    SMD PH2.5 Indoor high definition LED display module,RGB Indoor full color LED module

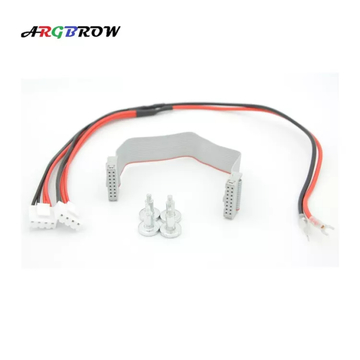

    Package include
    1x P2.5 160x160mm led panel
    1x Power Cable
    1x Pin Cable
    Product standard
    P2.5mm
    Pixel configuration
    SMD2121 3 in 1
    LEDs configuration
    Red:wave length: 625~630nm;700-800mcd
    Green:wave length: 525~530nm;1500-1800mcd
    Blue:wave length: 470~475nm;400-500mcd
    Pixel pitch (mm)
    2.5
    Frame Frequency
    ≥60Hz
    Refresh Rate
    ≥1920Hz
    White Balance Luminance(CDm2)
    ≥800CD/m2
    Operating Environment Temperature
    between -20°C and 60°C
    Operating Voltage
    DC 5V
    Input Signal
    RF,S-Video,RSBHV,YUV,YC,COMPOSITION
    Average No Failure
    ≥1000 hours
    Time Life-span
    >100000 hours
    Out-of Control rate
    <0.0002
    Products function introductions
    1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
    2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
    3) To pictures and character, have clear, exquisite and real display effect.
    4) Big viewing angle to 120 degree at horizontal line, 160 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
    Products application area
    1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display.
    2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, meeting room.

    Kindly Note:

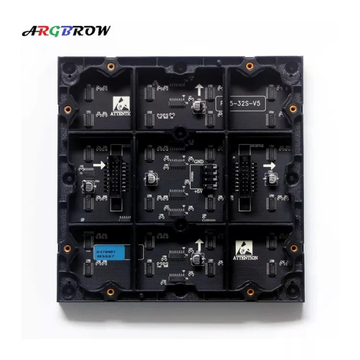

    Different batches of Led modules maybe have some difference of color and brightness, please buy all led modules of one led display screen at one time. And if possible, please buy some led modules as spare parts. The picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version. If you want to buy same PCB board and same screw holes led modules, please contact us in advance.Thanks for your understanding!


    If you need a large quantity of these items,

    please contact us for wholesale price from our email directly.
