Display Control Card
HD-512T Receiving Card
HD-512T Receiving Card

LED Display Full-Color 256*256 Points With 12 Groups HUB75E LED Matrix Panel Universal HD-512T Receiving Card

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.HDR512T

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   35.99
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 35.99
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description
    • Overview

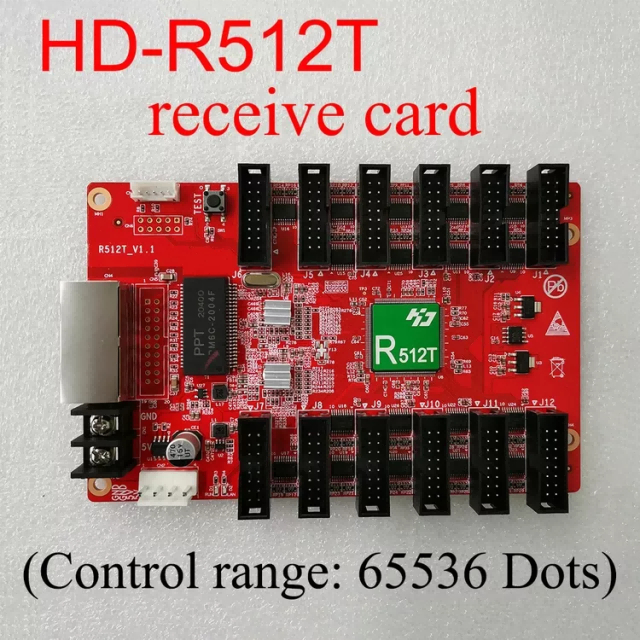

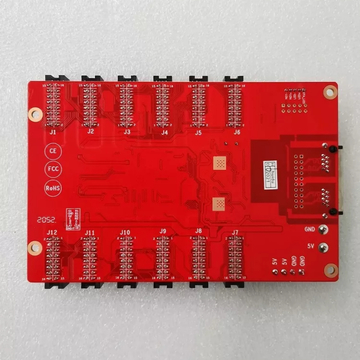

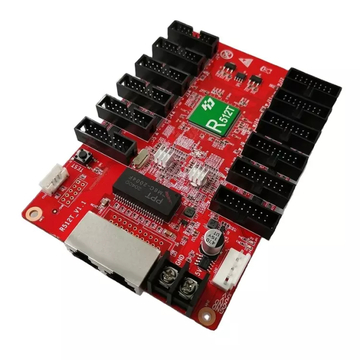

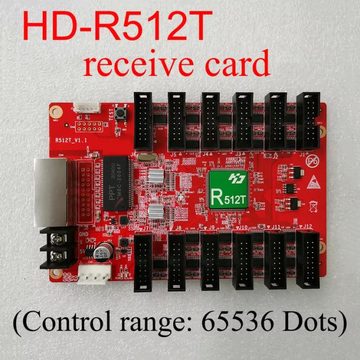

    HD-R512T receiving card is a receiving card used with gray-scale synchronous sending card/asynchronous sending card/two-in-one
    processor. It supports multi-card cascading, arbitrary ordering, conventional chips and mainstream PWM chips, and static to 1/64
    scan method.
    With sending card
    Dual-mode sending box，Asynchronous sending card,Synchronous sending card, Video processor of VP series.
    Module type
    Compatible with all common IC module, supported most PWM IC module.
    Scan mode
    Supports any scanning method from static to 1/64 scan
    Communication method
    Gigabit Ethernet
    Control range
    65536 pixels (128*512) Outdoor module width ≤256, Indoor module width ≤128
    Multi-card connection
    Receiving card can be put in any sequence
    Gray scale
    256~65536
    Smart setting
    A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen
    unit board
    Test functions
    Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
    Communication distance
    Super Cat5,Cat6 network cable within 80 meters
    Port
    5V DC Power*2,1Gbps Ethernet port*2, HUB75E*12
    Input voltage
    4V-6V
    Power
    5W
    Interface Description

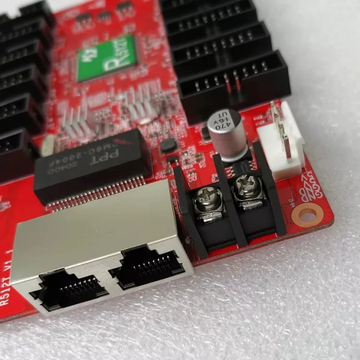

    1: Gigabit Ethernet port, used to connect the sending card or receiving card, thesame two network ports are interchangeable.
    2: Power interface, can be accessed with 4.5V ~ 5.5V DC voltage.
    3: Power interface, can be accessed with 4.5V ~ 5.5V DC voltage( 2 or 3 connect one of them is ok).
    4: Work indicator, D1 flashes to indicate that the control card is running normally,D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.
    5: HUB75Eport, connect to the modules.
    6: Test button, used to test display brightness uniformity and display module flatness.
    7: External indicator light, run light and data light.
